Cretex Specialty Products — Manhole & Pipe Sealing System
Comprehensive inflow and infiltration solutions for manholes and pipes. Stopping infiltration since 1981.
Or call +1 (305) 900-3909.
Mechanical seals cost about the same as applied seals but last 3.5 times longer (ASCE Manuals and Reports on Engineering Practice No. 92, 2008). Cretex pioneered the mechanical approach in 1981 and has spent four decades iterating on every leak path in a typical manhole — chimney, joints, lid seat, and grade adjustment. Their PRO-RING grade adjustment system alone has absorbed over 250 million field-service impacts across tens of thousands of US and Canadian installations with zero inflow attributed to ring failure.
Where it installs

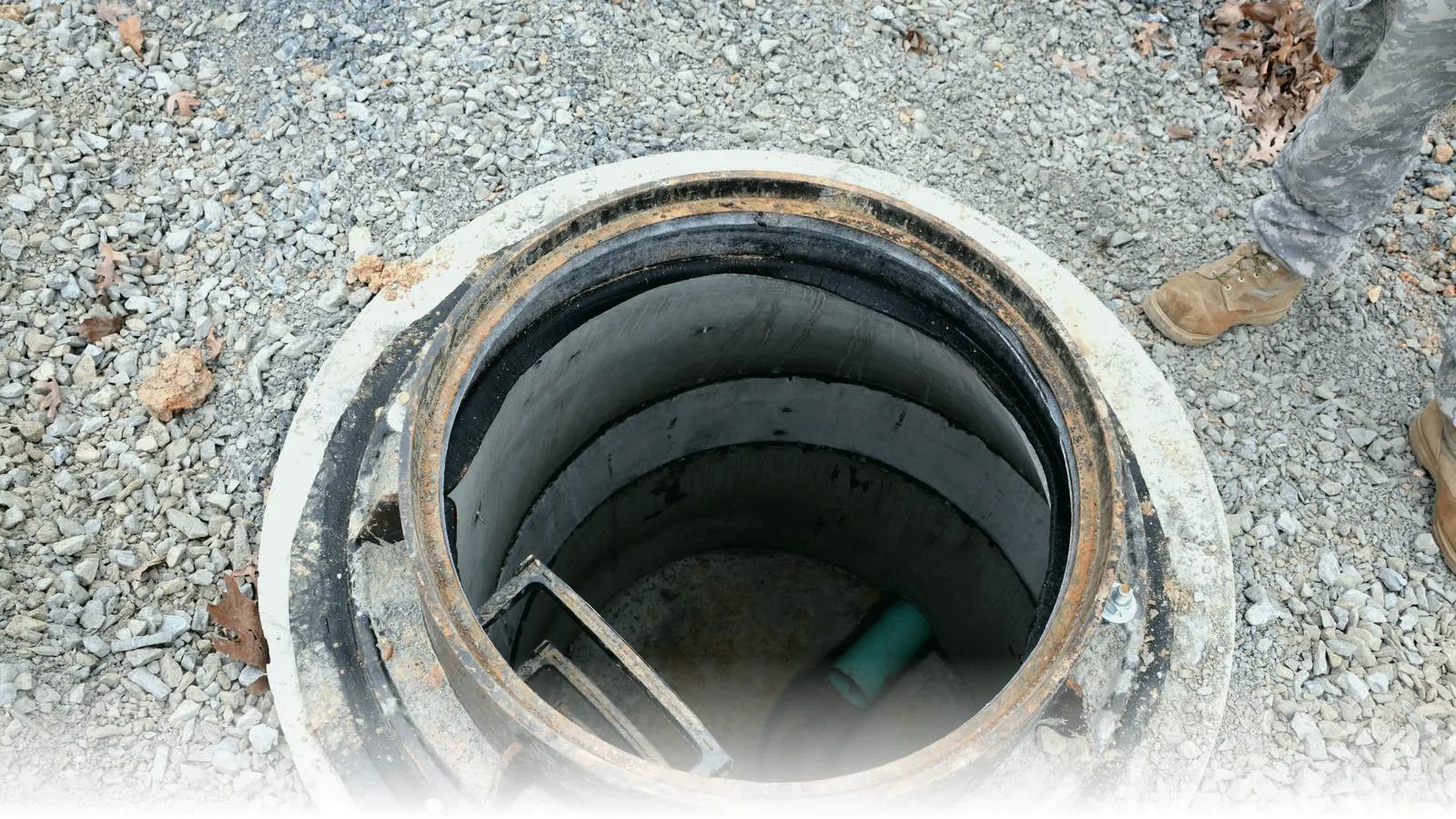

A precast concrete manhole during sewer rehabilitation. Cretex chimney seals fit between the cast-iron frame and the precast chimney section to stop infiltration at the most common leak path.
Cretex distributes a full set of mechanical sealing products through certified distributors like Nova. Most utilities mix and match from the line — internal chimney seals on rehabilitation projects, PRO-RING on every new-construction grade adjustment, lid plugs and gaskets to retrofit existing covers across a maintenance program. Nova ships single-item replacements as well as full rehabilitation packages nationwide.
Key features
Track record
Stopping infiltration since 1981.
Over 40 years in field service as the original mechanical-chimney-seal manufacturer. Used by US and Canadian utilities at tens of thousands of installations. Backed by 25- and 50-year manufacturer warranties depending on product line.
Chimney seals
Mechanical seal, no chemical bond required.
LSS internal chimney seals span up to 24 vertical inches without extensions; X-85 external chimney seals span up to 12 inches of adjustment between casting and concrete cone. Both meet ASTM C-923 rubber and install without primers, torches, or special tools.
Grade adjustment
50-year design life on PRO-RING.
Expanded polypropylene (EPP) grade adjustment rings rated HS-20 / HS-25 traffic. Available in round, square, and rectangular variants for any casting. Lightweight enough to install without lifting equipment; corrosion and chemical resistant; no mortar or grout required.
Joint seals
7.5-inch rubber compression seal.
Internal Joint Seals stop groundwater infiltration in collection-system mainline pipe and increase wastewater treatment capacity. ASTM C-923 rubber with ASTM A-240 Type 304 stainless steel expansion band. Reusable and mechanical (no chemical bond).
External joint wrap
Passes ASTM C 1244 vacuum test.
Cretex Wrap is a permanent external seal for manholes, round pipe, elliptical, oval, arched, tongue-and-groove, and bell-and-spigot joints. Self-contained ratchets eliminate the need for special tools; works on wet or dry surfaces with no primers or open flames.
